THK VRT2125M

More about: THK VRT2125M

For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.

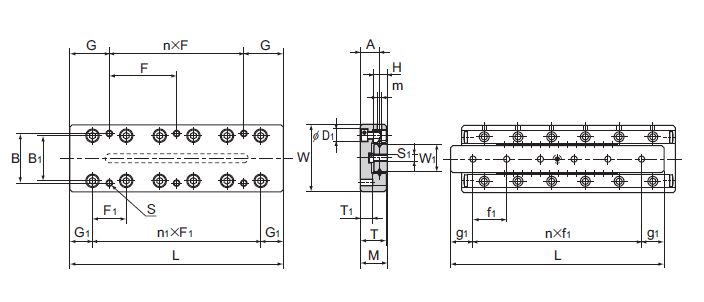

Model No.	Main dimensions				Table mounting tap position				Base surface dimensions Mounting hole position			No. of rollers Z	Basic load rating		Static permissible moment rating			Accuracy
	Max stroke	Width W -0.2 -0.4	Height M &177;0.1	Length L	B	n×F	G	S							MA	MB	MC	ΔC	ΔD
									S1	n×f1	g1		C	C0
	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm		kN	kN	N-m	N-m	N-m	&956;m	&956;m
VRT1025M	12	20	8	25	14	1×18	3.5	M2.6	M2.6	2×7.5	5	5	0.46	0.61	1.52	1.25	2.29	2	4
VRT1035M	18			35		1×28	3.5			2×10	7.5	7	0.63	0.92	2.62	2.32	3.44
VRT1045M	25			45		1×20	12.5			3×10		10	0.95	1.53	4.14	4.53	5.73		5
VRT1055M	32			55		1×30	12.5			4×10		12	1.09	1.83	5.92	6.41	6.87
VRT1065M	40			65		1×20	12.5			5×10		14	1.23	2.14	8.08	8.62	8.02
VRT1075M	45			75		1×30	22.5			6×10		18	1.50	2.75	13.3	14.0	10.3
VRT1085M	50			85		1×30	12.5			7×10		20	1.63	3.05	16.4	17.2	11.5
VRT2035M	18	30	12	35	22	1×28	3.5	M3	M3	1×20		5	0.84	1.09	4.32	3.55	7.06		4
VRT2050M	30			50		1×43	3.5			2×15	10	7	1.16	1.63	7.45	6.59	10.6
VRT2065M	40			65		1×30	17.5			3×15		9	1.46	2.17	11.8	10.5	14.1		5
VRT2080M	50			80		1×45	17.5			4×15		12	2.01	3.26	16.8	18.2	21.2
VRT2095M	60			95		2×30	17.5			5×15		14	2.26	3.80	23.0	24.5	24.7
VRT2110M	70			110		1×45	32.5			6×15		17	2.51	4.34	37.9	35.7	28.2
VRT2125M	80			125		2×45	17.5			7×15		19	2.76	4.89	46.7	44.3	31.8
VRT3055M	30	40	16	55	30	1×40	7.5	M4	M4	1×35		6	2.71	3.67	12.2	13.9	31.9
VRT3080M	45			80		1×65	7.5			2×25	15	10	4.06	6.11	33.1	36.2	53.1
VRT3105M	60			105		1×50	27.5			3×25		13	4.68	7.33	64.6	59.8	63.8	3	6
VRT3130M	75			130		1×75	27.5			4×25		17	5.87	9.77	107	100	85
VRT3155M	90			155		2×50	27.5			5×25		20	6.98	12.2	131	138	106
VRT3180M	105			180		1×75	52.5			6×25		24	8.05	14.7	189	196	128
VRT3205M	130			205		2×75	27.5			7×25		26	8.57	15.9	222	230	138

Application of THK THK VRT2125M

1. THK VRT2125M THK’s linear motion system helps to provide a guide device that enables this precision and speed to be realized.
2. THK VRT2125M In order to repeat the production of this advanced product, the LM guide and ball screw in the milling machine guide system which don’t waste of action
3. The LM guide and ball screw are indispensable for the movement of the tool section of the lathe because of its high rigidity and high precision.
4. By combining LM guides and ball screws with lubrication parts, we can reduce system design work and assembly steps, and extend the interval needed for maintenance.
5. Frequent earthquakes have caused great concern among residents in some regions. The vibration control system of THK THK VRT2125M can help solve the problem.
The system is based on the application technology of LM guide ball screw. It can provide protection to people’s life and life in earthquake. The system can not only prevent the damage caused by the earthquake, but also reduce people’s panic because of its omnipresent, reliable and durable.
