Note 1: The rotational speed limit value in the table applies to models that have no seal. With those attached with seals, up to 70% of this value is permitted.
For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.

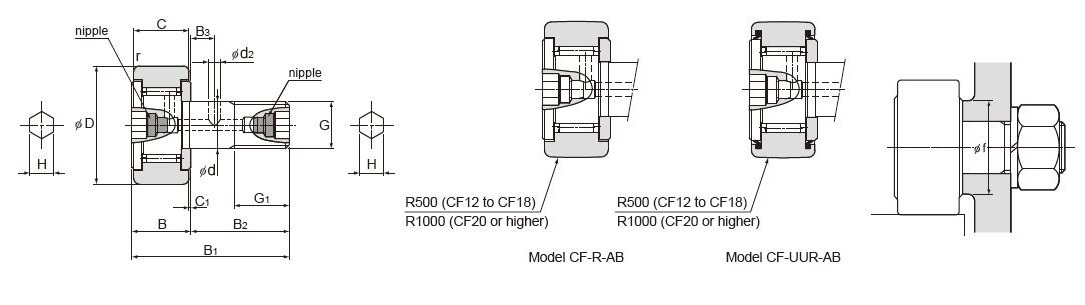

Stud diameter d	Model No.	Main dimensions													Basic load rating				Maximum permissible load F0	Track load capacity		Rotational speed1		Mass
		Outer diameter D	Outer ring width C	Threaded G	G1	B	Overall length B1	B2	B3	C1	d2	H	rsmin	Shoulder height f (Min.)	With cage		Full rollers			Cylindrical outer ring	Spherical outer ring
															Dynamic C	Static C0	Dynamic C	Static C0				With cage	Full rollers	With cage	Full rollers
mm		mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	kN	kN	kN	kN	kN	kN	kN	min-1	min-1	g	g
12	CF12&8209;AB	30	14	M12×1.5	13	15	40	25	6	0.6	3	6	0.6	20	7.87	9.79	13.4	19.8	9.37	7.06	2.45	14000	5800	105	107
12	CF12&8209;1&8209;AB	32	14	M12×1.5	13	15	40	25	6	0.6	3	6	0.6	20	7.87	9.79	13.4	19.8	9.37	7.45	2.74	14000	5800	115	117
16	CF16&8209;AB	35	18	M16×1.5	17	19.5	52	32.5	8	0.8	3	6	0.6	24	12	18.3	20.6	37.6	17.3	11.2	3.14	10000	4500	205	207
18	CF18&8209;AB	40	20	M18×1.5	19	21.5	58	36.5	8	0.8	3	6	1	26	14.7	25.2	25.2	51.3	26.1	14.4	3.72	8500	3800	295	300
20	CF20&8209;AB	52	24	M20×1.5	21	25.5	66	40.5	9	0.8	4	8	1	36	20.7	34.8	33.2	64.8	32.1	23.2	8.23	7000	3400	525	530
20	CF20&8209;1&8209;AB	47	24	M20×1.5	21	25.5	66	40.5	9	0.8	4	8	1	36	20.7	34.8	33.2	64.8	32.1	21	7.15	7000	3400	450	455
24	CF24&8209;AB	62	29	M24×1.5	25	30.5	80	49.5	11	0.8	4	8	1	40	30.6	53.2	46.7	92.9	49.5	34.2	10.5	6500	2900	915	925
24	CF24&8209;1&8209;AB	72	29	M24×1.5	25	30.5	80	49.5	11	0.8	4	8	1	40	30.6	53.2	46.7	92.9	49.5	39.8	12.9	6500	2900	1150	1160
30	CF30&8209;AB	80	35	M30×1.5	32	37	100	63	15	1	4	8	1	46	45.4	87.6	67.6	145	73.7	52.6	14.9	5000	2300	1880	1890
30	CF30&8209;1&8209;AB	85	35	M30×1.5	32	37	100	63	15	1	4	8	1	46	45.4	87.6	67.6	145	73.7	56	16.1	5000	2300	1950	1960
30	CF30&8209;2&8209;AB	90	35	M30×1.5	32	37	100	63	15	1	4	8	1	46	45.4	87.6	67.6	145	73.7	59.3	17.3	5000	2300	2000	2010
