More about :THK CFH10

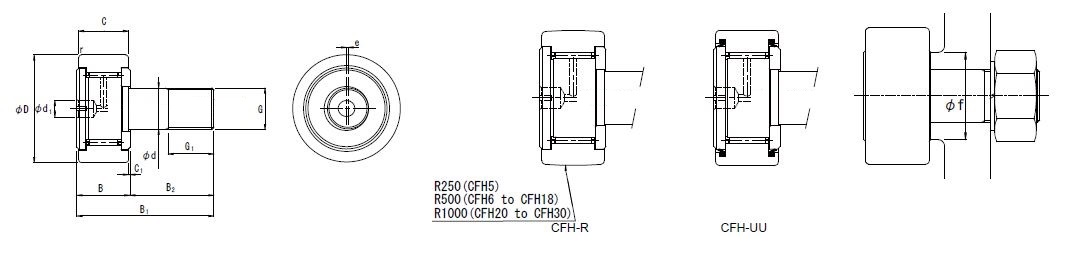

Stud diameter d	Model No.	Main dimensions												Basic load rating				Maximum permissible load F₀	Track load capacity		Rotational speed limit¹		Mass
		Outer diameter D	Outer ring width C	Threaded G	G₁	B	Overall length B₁	B₂	C₁	d₁	Runout e	r_smin	Shoulder height f (Min.)	With cage		Full rollers			Cylindrical outer ring	Spherical outer ring	With cage	Full rollers	With cage	Full rollers
		Outer diameter D	Outer ring width C	Threaded G	G₁	B	Overall length B₁	B₂	C₁	d₁	Runout e	r_smin	Shoulder height f (Min.)	Dynamic C	Static C₀	Dynamic C	Static C₀		Cylindrical outer ring	Spherical outer ring	With cage	Full rollers	With cage	Full rollers
mm		mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	kN	kN	kN	kN	kN	kN	kN	min^-1	min^-1	g	g
6	CFH6	16	11	M6×1	8	12	28	16	0.6	4	0.25	0.3	11	3.59	3.58	6.94	8.5	2.11	3.43	1.08	25000	11000	18.5	19
8	CFH8	19	11	M8×1.25	10	12	32	20	0.6	4	0.25	0.3	13	4.17	4.65	8.13	11.2	4.73	4.02	1.37	20000	8700	28.5	29
10	CFH10	22	12	M10×1.25	12	13	36	23	0.6	4	0.3	0.3	15	5.33	6.78	9.42	14.3	5.81	4.7	1.67	17000	7200	45	46
10	CFH10&8209;1	26	12	M10×1.25	12	13	36	23	0.6	4	0.3	0.3	15	5.33	6.78	9.42	14.3	5.81	5.49	2.06	17000	7200	60	61

Application of THK THK CFH10
1. THK CFH10 THK’s linear motion system helps to provide a guide device that enables this precision and speed to be realized.
2. THK CFH10 In order to repeat the production of this advanced product, the LM guide and ball screw in the milling machine guide system which don’t waste of action
3. The LM guide and ball screw are indispensable for the movement of the tool section of the lathe because of its high rigidity and high precision.
4. By combining LM guides and ball screws with lubrication parts, we can reduce system design work and assembly steps, and extend the interval needed for maintenance.
5. Frequent earthquakes have caused great concern among residents in some regions. The vibration control system of THK THK CFH10 can help solve the problem.
The system is based on the application technology of LM guide ball screw. It can provide protection to people's life and life in earthquake. The system can not only prevent the damage caused by the earthquake, but also reduce people's panic because of its omnipresent, reliable and durable.
