Product name:THK SK30
Materials:Bearing steel
Availability:In stock
Price: send email to: sale@noksbearings.com
Views: 2474
Editor: admin

Product Detail:

More about :THK SK30

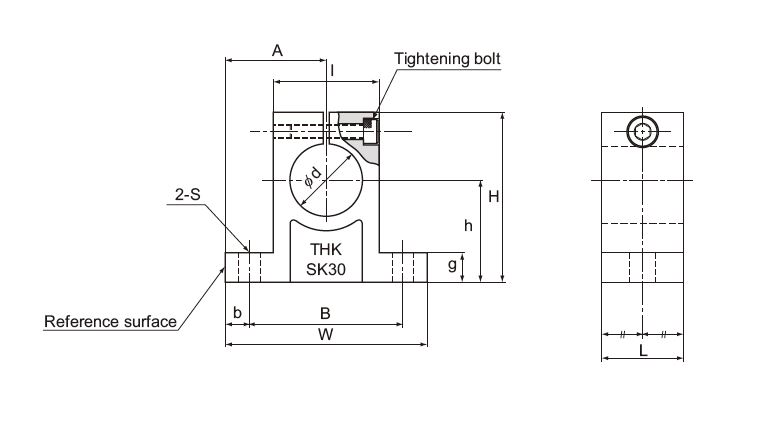

Model No. Main dimensions Mass
H W L B S Mounting
bolt
model No.
h
±0.02
A
±0.05
b g I Shaft
diameter
d
Mounting
bolt
model No.
mm mm mm mm mm mm mm mm mm mm mm g
SK1032.842 14 32 5.5M5 20 21 5 6 18 10 M4 24
SK1237.542 14 32 5.5M5 23 21 5 6 20 12 M4 30
SK1337.542 14 32 5.5M5 23 21 5 6 20 13 M4 30
SK1644 48 16 38 5.5M5 27 24 5 8 25 16 M4 40
SK2051 60 20 45 6.6M6 31 30 7.510 30 20 M5 70
SK2560 70 24 56 6.6M6 35 35 7 12 38 25 M6 130
SK3070 84 28 64 9 M8 42 42 10 12 44 30 M6 180
SK3583 98 32 74 11 M10 50 49 12 15 50 35 M8 270
SK4096 114 36 90 11 M1060 57 12 15 60 40 M8 420
For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.

Application of THK THK SK30
1. THK SK30 THK’s linear motion system helps to provide a guide device that enables this precision and speed to be realized.
2. THK SK30 In order to repeat the production of this advanced product, the LM guide and ball screw in the milling machine guide system which don’t waste of action
3. The LM guide and ball screw are indispensable for the movement of the tool section of the lathe because of its high rigidity and high precision.
4. By combining LM guides and ball screws with lubrication parts, we can reduce system design work and assembly steps, and extend the interval needed for maintenance.
5. Frequent earthquakes have caused great concern among residents in some regions. The vibration control system of THK THK SK30 can help solve the problem.
The system is based on the application technology of LM guide ball screw. It can provide protection to people's life and life in earthquake. The system can not only prevent the damage caused by the earthquake, but also reduce people's panic because of its omnipresent, reliable and durable.
