THK LR2565Z

More about: THK LR2565Z

Note: Using a hexagonal-socket-head type bolt as the mounting bolt marked with * may cause interference.
Note: A type with UU seal is not available for model LRA without symbol Z. For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.

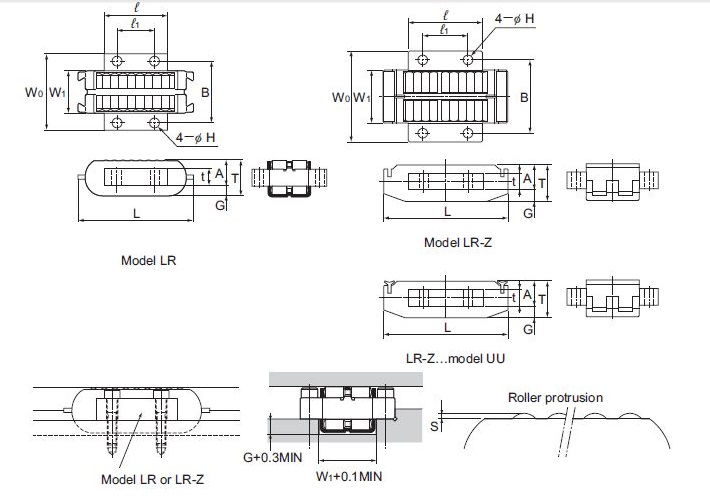

Model No.	Main dimensions													Mass	Basic load rating
	W1 0 -0.1	Length L	Thickness T	Width W0	A	t	G	l 0 -0.2	Mounting hole pitch		H	S	Mounting bolt
									l1	B					Dynamic C	Static C0
	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm		g	kN	kN
LR1547Z	15	47	16	30	11	7	5	20	12	23	3.4	0.2	M3	60	21.6	39.9
LR2055Z	20	55	17.3	36	12	8	5.3	30	18	29	4.5	0.2	M4	110	38.9	84.9
LR2565Z	25	65	20.6	45	14	9	6.6	35	20	36	5.5	0.1	M5	190	55	113
LR3275Z	32	75	21.6	55	15	10	6.6	45	27	44	5.5	0.1	M5	320	88	208
LR4095	40	95	30	68	21	14	9	55	35	54	6.6	0.3	M6	800	150	326
LR50130	50	130	42	82	30	20	12	78	50	66	9	0.3	M8	1810	285	577
