AFB-LF is the default grease. For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.

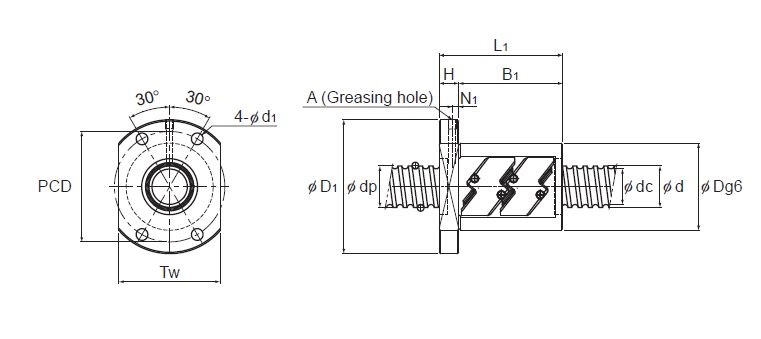

Screw shaft outer diameter d	Lead Ph	Model No.	Ball center-to-center diameter dp	Thread minor diameter dc	No. of loaded circuits Rows × turns	Basic load rating		Rigidity K	Nut dimensions										Axial clearance	Screw shaft inertial moment/mm	Nut mass
						Dynamic Ca	Static C0a		Outer diameter D	Flange diameter D1	Overall length L1	H	B1	PCD	d1	Tw	Greasing hole
																	N1	A
mm	mm		mm	mm		kN	kN	N/µm	mm	mm	mm	mm	mm	mm	mm	mm	mm		mm	kg•cm2/mm	kg
14	4	BTK1404V-3.6	14.4	11.5	1×3.65	5.5	11.5	150	31	50	40	10	30	40	4.5	37	5	M6×1	0.1	2.96 × 10-4	0.23
14	5	BTK1405V-2.6	14.5	11.2	1×2.65	5	11.4	116	32	50	40	10	30	40	4.5	38	5	M6×1	0.1	2.96 × 10-4	0.22
16	5	BTK1605V-2.6	16.75	13.5	1×2.65	5.4	13.3	130	34	54	40	10	30	44	4.5	40	5	M6×1	0.1	5.05 × 10-4	0.24
18	8	BTK1808V-3.6	19.3	14.4	1×3.65	13.1	31	210	50	80	61	12	49	65	6.6	60	5	M6×1	0.1	8.09 × 10-4	0.84
20	5	BTK2005V-2.6	20.5	17.2	1×2.65	6	16.5	150	40	60	40	10	30	50	4.5	46	5	M6×1	0.1	1.23 × 10-3	0.32
20	10	BTK2010V-2.6	21.25	16.4	1×2.65	10.6	25.1	160	52	82	61	12	49	67	6.6	64	5	M6×1	0.1	1.23 × 10-3	0.93
25	5	BTK2505V-2.6	25.5	22.2	1×2.65	6.7	20.8	180	43	67	40	10	30	55	5.5	50	5	M6×1	0.1	3.01 × 10-3	0.34
25	10	BTK2510V-5.3	26.8	20.2	2×2.65	31.2	83.7	400	60	96	98	15	83	78	9	72	6	M6×1	0.1	3.01 × 10-3	1.83
28	6	BTK2806V-2.6	28.5	25.2	1×2.65	7	23.4	200	50	80	47	12	35	65	6.6	60	6	M6×1	0.1	4.74 × 10-3	0.59
28	6	BTK2806V-5.3	28.5	25.2	2×2.65	12.8	46.8	390	50	80	65	12	53	65	6.6	60	6	M6×1	0.1	4.74 × 10-3	0.75
32	10	BTK3210V-2.6	33.75	27.2	1×2.65	19.8	53.8	250	67	103	68	15	53	85	9	78	5	M6×1	0.14	8.08 × 10-3	1.56
32	10	BTK3210V-5.3	33.75	27.2	2×2.65	36	107.5	490	67	103	98	15	83	85	9	78	5	M6×1	0.14	8.08 × 10-3	2.10
36	10	BTK3610V-2.6	37	30.5	1×2.65	20.8	59.8	270	70	110	70	17	53	90	11	82	7	M6×1	0.17	1.29 × 10-2	1.78
36	10	BTK3610V-5.3	37	30.5	2×2.65	37.8	118.7	530	70	110	100	17	83	90	11	82	7	M6×1	0.17	1.29 × 10-2	2.35
40	10	BTK4010V-5.3	41.75	35.2	2×2.65	40.3	134.9	590	76	116	100	17	83	96	11	88	7	M6×1	0.17	1.97 × 10-2	2.60
45	12	BTK4512V-5.3	46.5	39.2	2×2.65	49.5	169	650	82	128	118	20	98	104	14	94	8	M6×1	0.17	3.16 × 10-2	3.48
50	16	BTK5016V-5.3	52.7	42.9	2×2.65	93.8	315.2	930	102	162	145	25	120	132	18	104	12.5	PT1/8	0.2	4.82 × 10-2	6.52
