Note 1: The rotational speed limit value in the table applies to models with grease lubrication and seals.
Model CF-SFU is delivered with a stopper plug fitted.
For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.

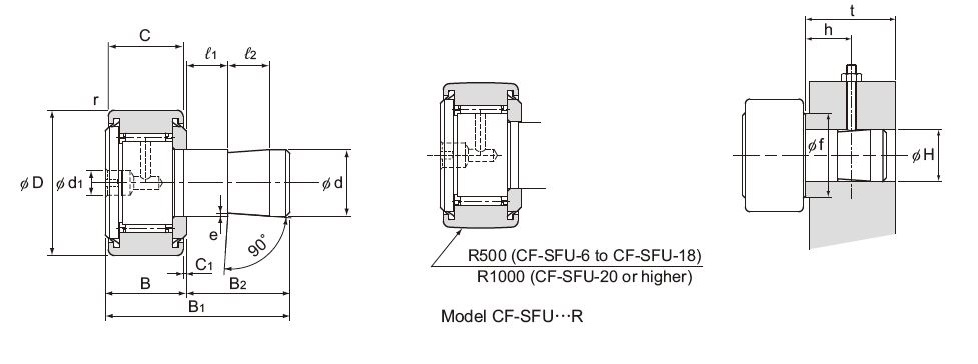

Stud diameter d	Model No.	Main dimensions											Mounting dimensions				Basic load rating		Maximum permissible load F0	Track load capacity	Rotational speed limit1	Mass
		Outer diameter D	Outer ring width C	B	Overall length B1	B2	C1	l1	l2	d1	rsmin	e	Mounting dimension H Tolerance H7	t (Min.)	Shoulder height f (Min.)	h (reference value)	With cage			Cylindrical outer ring	With cage	With cage
																	Dynamic C	Static C0
mm		mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	kN	kN	kN	kN	min-1	g
6	CF&8209;SFU&8209;6	16	11	12	32	20	0.6	5	10	4	0.3	0.3	6	20	11	10	3.59	3.58	2.11	3.43	17500	19
8	CF&8209;SFU&8209;8	19	11	12	32	20	0.6	5	10	4	0.3	0.5	8	20	13	10	4.17	4.65	4.73	4.02	14000	28.5
10	CF&8209;SFU&8209;10	22	12	13	33	20	0.6	5	10	4	0.3	0.5	10	20	15	10	5.33	6.78	5.81	4.7	11900	43
10	CF&8209;SFU&8209;10&8209;1	26	12	13	33	20	0.6	5	10	4	0.3	0.5	10	20	15	10	5.33	6.78	5.81	5.49	11900	58.5
12	CF&8209;SFU&8209;12	30	14	15	35	20	0.6	5	10	6	0.6	1	12	20	20	10	7.87	9.79	9.37	7.06	9800	93
12	CF&8209;SFU&8209;12&8209;1	32	14	15	35	20	0.6	5	10	6	0.6	1	12	20	20	10	7.87	9.79	9.37	7.45	9800	103
16	CF&8209;SFU&8209;16	35	18	19.5	44.5	25	0.8	10	10	6	0.6	1	16	25	24	15	12	18.3	17.3	11.2	7000	163.5
18	CF&8209;SFU&8209;18	40	20	21.5	46.5	25	0.8	10	10	6	1	1	18	25	26	15	14.7	25.2	26.1	14.4	5950	235
20	CF&8209;SFU&8209;20	52	24	25.5	50.5	25	0.8	10	10	8	1	1	20	25	36	15	20.7	34.8	32.1	23.2	4900	436
20	CF&8209;SFU&8209;20&8209;1	47	24	25.5	50.5	25	0.8	10	10	8	1	1	20	25	36	15	20.7	34.8	32.1	21	4900	361
