More about :THK CFH30&8209;AB

Note 1: The rotational speed limit value in the table applies to models that have no seal. With those attached with seals, up to 70% of this value is permitted.
For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.

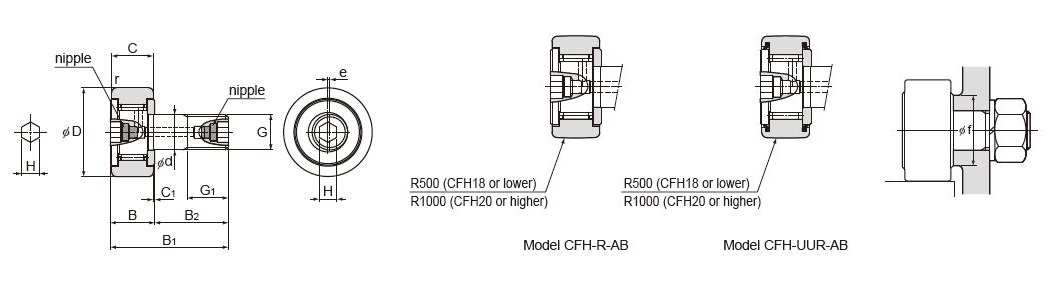

Stud diameter d	Model No.	Main dimensions												Basic load rating				Maximum permissible load F0	Track load capacity		Rotational speed1		Mass
		Outer diameter D	Outer ring width C	Threaded G	G1	B	Overall length B1	B2	C1	Runout e	H	rsmin	Shoulder height f (Min.)	With cage		Full rollers			Cylindrical outer ring	Spherical outer ring	With cage	Full rollers	With cage	Full rollers
														Dynamic C	Static C0	Dynamic C	Static C0
mm		mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	kN	kN	kN	kN	kN	kN	kN	min-1	min-1	g	g
12	CFH12&8209;AB	30	14	M12×1.5	13	15	40	25	0.6	0.4	6	0.6	20	7.87	9.79	13.4	19.8	9.37	7.06	2.45	14000	5800	105	107
12	CFH12&8209;1&8209;AB	32	14	M12×1.5	13	15	40	25	0.6	0.4	6	0.6	20	7.87	9.79	13.4	19.8	9.37	7.45	2.74	14000	5800	115	117
16	CFH16&8209;AB	35	18	M16×1.5	17	19.5	52	32.5	0.8	0.5	6	0.6	24	12	18.3	20.6	37.6	17.3	11.2	3.14	10000	4500	205	207
18	CFH18&8209;AB	40	20	M18×1.5	19	21.5	58	36.5	0.8	0.6	6	1	26	14.7	25.2	25.2	51.3	26.1	14.4	3.72	8500	3800	295	300
20	CFH20&8209;AB	52	24	M20×1.5	21	25.5	66	40.5	0.8	0.7	8	1	36	20.7	34.8	33.2	64.8	32.1	23.2	8.23	7000	3400	525	530
20	CFH20&8209;1&8209;AB	47	24	M20×1.5	21	25.5	66	40.5	0.8	0.7	8	1	36	20.7	34.8	33.2	64.8	32.1	21	7.15	7000	3400	450	455
24	CFH24&8209;AB	62	29	M24×1.5	25	30.5	80	49.5	0.8	0.8	8	1	40	30.6	53.2	46.7	92.9	49.5	34.2	10.5	6500	2900	915	925
24	CFH24&8209;1&8209;AB	72	29	M24×1.5	25	30.5	80	49.5	0.8	0.8	8	1	40	30.6	53.2	46.7	92.9	49.5	39.8	12.9	6500	2900	1150	1160
30	CFH30&8209;AB	80	35	M30×1.5	32	37	100	63	1	1	8	1	46	45.4	87.6	67.6	145	73.7	52.6	14.9	5000	2300	1880	1890
30	CFH30&8209;1&8209;AB	85	35	M30×1.5	32	37	100	63	1	1	8	1	46	45.4	87.6	67.6	145	73.7	56	16.1	5000	2300	1950	1960
30	CFH30&8209;2&8209;AB	90	35	M30×1.5	32	37	100	63	1	1	8	1	46	45.4	87.6	67.6	145	73.7	59.3	17.3	5000	2300	2000	2010
