More about :THK VR6M&8209;200H×13Z

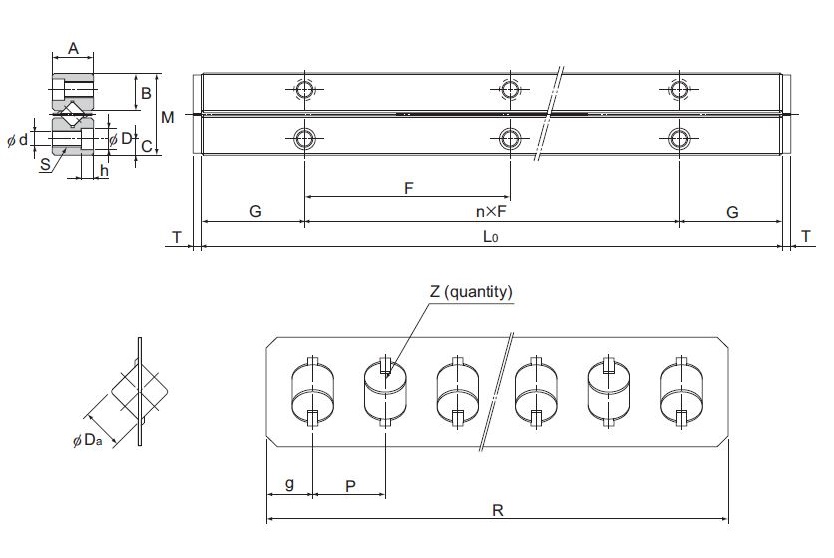

Note: "One set" in the model No. above indicates a combination of four rails and two cages. For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.

Model No.	Max stroke	Main dimensions																No. of rollers Z	Per- missible preload &948;	Basic load rating (per roller)		Rail mass
		Combined dimensions			Mounting dimensions
		M	A	L0	n×F	G	B	C	S	d	D	h	T	Da	R	g	P			CZ	CZ0
	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm		&956;m	kN	kN	kg/m
VR1M&8209;20H×5Z	12	8.5	4	20	1×10	5	3.9	1.8	M2	1.65	3	1.4	1.6	1.5	14	2	2.5	5	–2	0.152	0.153	0.11
VR1M&8209;30H×7Z	22			30	2×10										19			7
VR1M&8209;40H×10Z	27			40	3×10										26.5			10
VR1M&8209;50H×13Z	32			50	4×10										34			13
VR1M&8209;60H×16Z	37			60	5×10										41.5			16
VR1M&8209;70H×19Z	42			70	6×10										49			19
VR1M&8209;80H×21Z	52			80	7×10										54			21
VR2M&8209;30H×5Z	18	12	6	30	1×15	7.5	5.6	2.5	M3	2.55	4.4	2	1.5	2	21	2.5	4	5	–3	0.276	0.271	0.23
VR2M&8209;45H×8Z	24			45	2×15										33			8
VR2M&8209;60H×11Z	30			60	3×15										45			11
VR2M&8209;75H×13Z	44			75	4×15										53			13
VR2M&8209;90H×16Z	50			90	5×15										65			16
VR2M&8209;105H×18Z	64			105	6×15										73			18
VR2M&8209;120H×21Z	70			120	7×15										85			21
VR2M&8209;135H×23Z	84			135	8×15										93			23
VR2M&8209;150H×26Z	90			150	9×15										105			26
VR2M&8209;165H×29Z	96			165	10×15										117			29
VR2M&8209;180H×32Z	102			180	11×15										129			32
VR3M&8209;50H×7Z	28	18	8	50	1×25	12.5	8.3	3.5	M4	3.3	6	3.1	2	3	36	3	5	7	–4	0.639	0.611	0.45
VR3M&8209;75H×10Z	48			75	2×25										51			10
VR3M&8209;100H×14Z	58			100	3×25										71			14
VR3M&8209;125H×17Z	78			125	4×25										86			17
VR3M&8209;150H×21Z	88			150	5×25										106			21
VR3M&8209;175H×24Z	108			175	6×25										121			24
VR3M&8209;200H×28Z	118			200	7×25										141			28
VR3M&8209;225H×31Z	138			225	8×25										156			31
VR3M&8209;250H×35Z	148			250	9×25										176			35
VR3M&8209;275H×38Z	168			275	10×25										191			38
VR3M&8209;300H×42Z	178			300	11×25										211			42
VR4M&8209;80H×7Z	58	22	11	80	1×40	20	10.2	4.5	M5	4.3	8	4.2	2	4	51	4.5	7	7	–5	1.38	1.35	0.8
VR4M&8209;120H×11Z	82			120	2×40										79			11
VR4M&8209;160H×15Z	106			160	3×40										107			15
VR4M&8209;200H×19Z	130			200	4×40										135			19
VR4M&8209;240H×23Z	154			240	5×40										163			23
VR4M&8209;280H×27Z	178			280	6×40										191			27
VR4M&8209;320H×31Z	202			320	7×40										219			31
VR4M&8209;360H×35Z	226			360	8×40										247			35
VR4M&8209;400H×39Z	250			400	9×40										275			39
VR4M&8209;440H×43Z	274			440	10×40										303			43
VR4M&8209;480H×47Z	298			480	11×40										331			47
VR6M&8209;100H×7Z	56	30	15	100	1×50	25	14.4	6	M6	5.2	9.5	5.2	3.2	6	72	6	10	7	–7	3.78	3.78	1.5
VR6M&8209;150H×10Z	96			150	2×50										102			10
VR6M&8209;200H×13Z	136			200	3×50										132			13
VR6M&8209;250H×17Z	156			250	4×50										172			17
VR6M&8209;300H×20Z	196			300	5×50										202			20
VR6M&8209;350H×24Z	216			350	6×50										242			24
VR6M&8209;400H×27Z	256			400	7×50										272			27
VR6M&8209;450H×31Z	276			450	8×50										312			31
VR6M&8209;500H×34Z	316			500	9×50										342			34
VR6M&8209;550H×38Z	336			550	10×50										382			38
VR6M&8209;600H×41Z	376			600	11×50										412			41
