THK SH20LUU

More about: THK SH20LUU

For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.

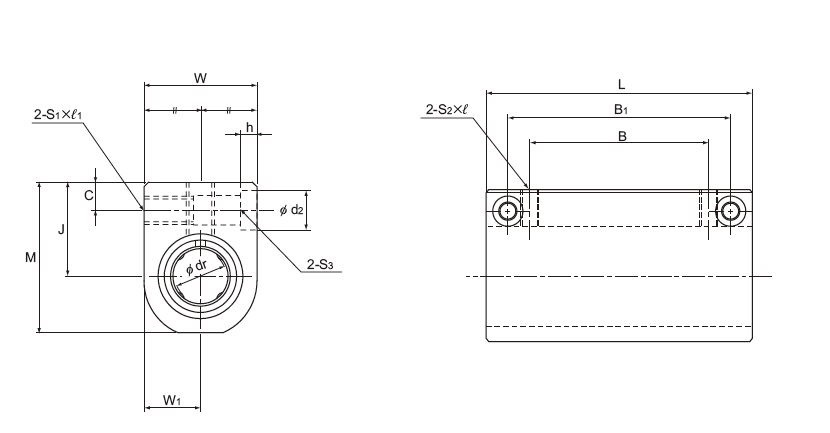

Model No.	Outer dimensions			LM casing dimensions												Model No. of Linear Bushing to be combined	Basic load rating		Mass
	Height M	Width W	Length L	Mounting hole position			Tap		Through bolt S3	Center height J ±0.02	W1 ±0.02	d2	h	Inscribed bore diameter			Dynamic rating C	Static rating C0
				B	B1	C	S1 × l1	S2 × l						dr	Tolerance
	mm	mm	mm	mm	mm	mm	mm	mm		mm	mm	mm	mm	mm			N	N	g
SH3LUU	14	10	23	10	18	3	M3×6	M3×5.5	M2	9	5	4.2	1.5	3	0 -0.008	LM3UU	139	216	8.5
SH4LUU	16	12	27	14	22	3	M3×6	M3×6	M2	10	6	4.2	1.5	4		LM4UU	139	254	13
SH5LUU	18	14	32	18	26	3	M3×6	M3×6	M2	11	7	4.2	1.5	5		LM5UU	263	412	22
SH6LUU	22	16	40	20	30	5	M4×8	M4×8	M3	14	8	6.5	3.3	6	0 -0.009	LM6UU	324	529	35
SH8LUU	26	20	52	30	42	5	M4×8	M5×8.5	M3	16	10	6.5	3.3	8		LM8UU	431	784	65
SH10LUU	32	26	60	36	50	6	M5×10	M6×9.5	M4	19	13	8	4.4	10		LM10UU	588	1100	125
SH12LUU	34	28	62	36	50	6	M5×10	M6×9.5	M4	20	14	8	4.4	12		LM12UU	657	1200	155
SH13LUU	36	30	66	40	54	6	M5×10	M6×9.5	M4	21	15	8	4.4	13		LM13UU	814	1570	190
SH16LUU	42	36	76	52	66	6	M5×10	M6×10	M4	24	18	8	4.4	16		LM16UU	1230	2350	295
SH20LUU	49	42	86	58	72	7	M6×12	M6×12	M5	28	21	9.5	5.4	20	0 -0.010	LM20UU	1400	2750	425

Application of THK THK SH20LUU

1. THK SH20LUU THK’s linear motion system helps to provide a guide device that enables this precision and speed to be realized.
2. THK SH20LUU In order to repeat the production of this advanced product, the LM guide and ball screw in the milling machine guide system which don’t waste of action
3. The LM guide and ball screw are indispensable for the movement of the tool section of the lathe because of its high rigidity and high precision.
4. By combining LM guides and ball screws with lubrication parts, we can reduce system design work and assembly steps, and extend the interval needed for maintenance.
5. Frequent earthquakes have caused great concern among residents in some regions. The vibration control system of THK THK SH20LUU can help solve the problem.
The system is based on the application technology of LM guide ball screw. It can provide protection to people’s life and life in earthquake. The system can not only prevent the damage caused by the earthquake, but also reduce people’s panic because of its omnipresent, reliable and durable.
