Included items EK4-EK8
Item No.	Item name	Qty
①	Housing	1
②	Bearing	1 set
③	Set nut	1
④	Collar	2
⑤	Seal	1
⑥	Lock Nut	1
⑦	Hexagonal socket head set screw (with set piece)	1

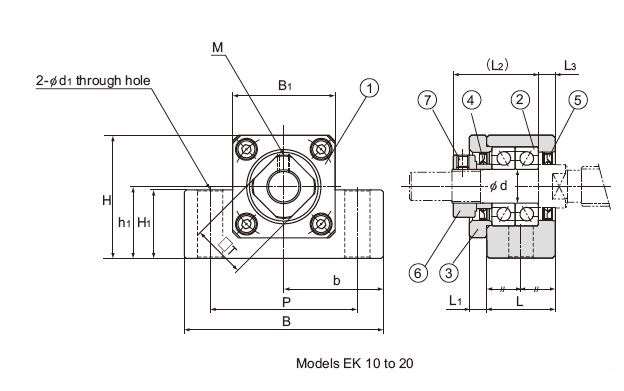

Model No.	Bearing journal diameter d	L	L1	L2	L3	B	H	b ±0.02	h1 ±0.02	B1	H1	P	d1	d2	h	M	T	Bearing used	Basic load rating			Mass
																			Axial direction
																			Dynamic Ca	Static permissible	Rigidity
	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm		kN	kN	N/µm	kg

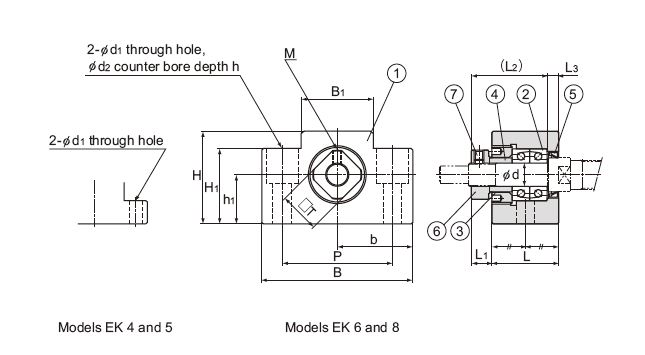

EK4	4	15	5.5	17.5	3	34	19	17	10	18	7	26	4.5	—	—	M2.6	10	AC4&8209;12 (DF P5)	0.93	1.1	27	0.06
EK5	5	16.5	5.5	18.5	3.5	36	21	18	11	20	8	28	4.5	—	—	M2.6	11	AC5&8209;14 (DF P5)	1	1.24	29	0.08
EK6	6	20	5.5	22	3.5	42	25	21	13	18	20	30	5.5	9.5	11	M3	12	AC6&8209;16 (DF P5)	1.38	1.76	35	0.14
EK8	8	23	7	26	4	52	32	26	17	25	26	38	6.6	11	12	M3	14	79M8A (DF P5)	2.93	2.15	49	0.24
