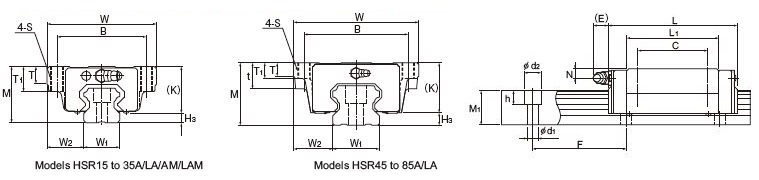

| Model No. | Outer dimensions | Block dimensions | Rail dimensions | Basic load rating | ||||||
| Radial | ||||||||||
| Height M | Width W | Length L | B | C | S | Pitch F | d1xd2xh | Dynamic C | Static C0 | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | |
| HSR15A | 24 | 47 | 56.6 | 38 | 30 | M5 | 60 | 4.5x7.5x5.3 | 10.9 | 15.7 |
| HSR20A | 30 | 63 | 74 | 53 | 40 | M6 | 60 | 6x9.5x8.5 | 19.8 | 27.4 |
| HSR25A | 36 | 70 | 83.1 | 57 | 45 | M8 | 60 | 7x11x9 | 27.6 | 36.4 |
| HSR30A | 42 | 90 | 98 | 72 | 52 | M10 | 80 | 9x14x12 | 40.5 | 53.7 |
| HSR35A | 48 | 100 | 109.4 | 82 | 62 | M10 | 80 | 9x14x12 | 53.9 | 70.2 |
| HSR45A | 60 | 120 | 139 | 100 | 80 | M12 | 105 | 14x20x17 | 82.2 | 101 |
| HSR55A | 70 | 140 | 163 | 116 | 95 | M14 | 120 | 16x23x20 | 121 | 146 |
| HSR65A | 90 | 170 | 186 | 142 | 110 | M16 | 150 | 18x26x22 | 195 | 228 |
