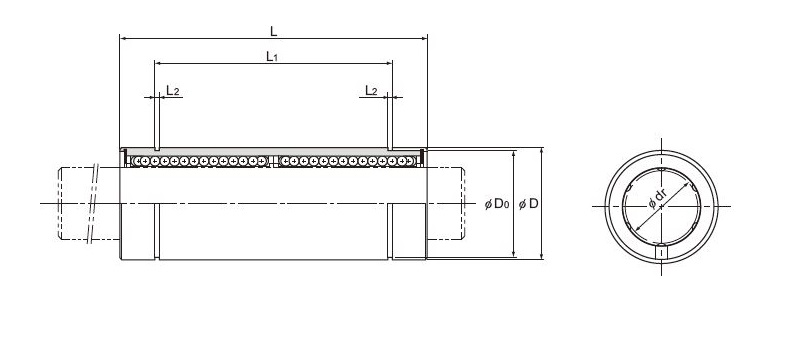

| Model No. | Ball rows | Main dimensions | Eccentricity (max) | Radial clearance tolerance | Basic load rating | Mass | ||||||||||
| Inscribed bore diameter | Outer diameter | Length | L1 | Tolerance | L2 | D0 | Dynamic rating C | Static rating C0 | ||||||||
| dr | Tolerance | D | Tolerance | L | Tolerance | |||||||||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | µm | µm | N | N | g | ||
| LM3ML | 4 | 3 | 0 -0.010 | 7 | 0 -0.013 | 19 | 0 -0.3 | — | — | — | — | 10 | -2 | 139 | 216 | 3 |
| LM4ML | 4 | 4 | 8 | 23 | — | — | — | 10 | -3 | 139 | 254 | 4 | ||||
| LM5ML | 4 | 5 | 10 | 29 | 20 | 0 -0.3 | 1.1 | 9.6 | 10 | -3 | 263 | 412 | 8 | |||
| LM6ML | 4 | 6 | 12 | 35 | 27 | 1.1 | 11.5 | 15 | -5 | 324 | 529 | 16 | ||||
| LM8ML | 4 | 8 | 15 | 45 | 35 | 1.1 | 14.3 | 15 | -5 | 431 | 784 | 31 | ||||
| LM10ML | 4 | 10 | 19 | 0 -0.016 | 55 | 44 | 1.3 | 18 | 15 | -5 | 588 | 1100 | 62 | |||
| LM12ML | 4 | 12 | 21 | 57 | 46 | 1.3 | 20 | 15 | -5 | 657 | 1200 | 80 | ||||
| LM13ML | 4 | 13 | 23 | 61 | 46 | 1.3 | 22 | 15 | -7 | 814 | 1570 | 90 | ||||
| LM16ML | 5 | 16 | 28 | 70 | 53 | 1.6 | 27 | 15 | -7 | 1230 | 2350 | 145 | ||||
| LM20ML | 5 | 20 | 0 -0.012 | 32 | 0 -0.019 | 80 | 61 | 1.6 | 30.5 | 20 | -9 | 1400 | 2750 | 180 | ||
| LM25ML | 6 | 25 | 40 | 112 | 0 -0.4 | 82 | 0 -0.4 | 1.85 | 38 | 20 | -9 | 1560 | 3140 | 440 | ||
| LM30ML | 6 | 30 | 45 | 123 | 89 | 1.85 | 43 | 20 | -9 | 2490 | 5490 | 580 | ||||
