THK SC6MUU

More about: THK SC6MUU

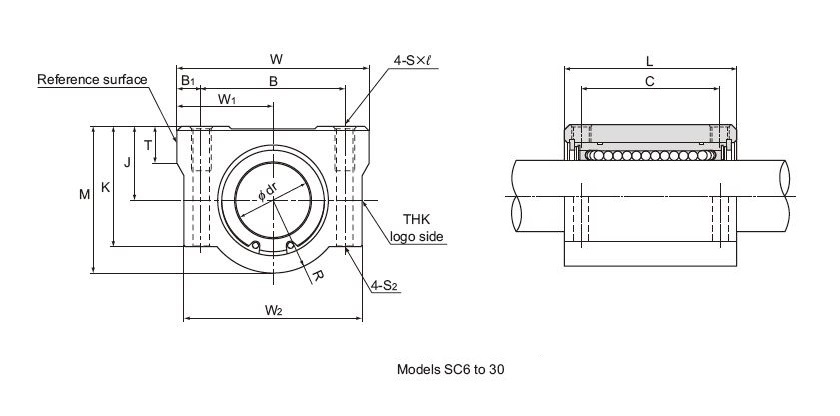

Model No.	Outer dimensions			LM casing dimensions													Model No. of Linear Bushing to be combined	Basic load rating		Mass
	Height M	Width W	Length L	Mounting hole position			Tap S × l	Through bolt S2	Center height J ±0.02	W1 ±0.02	K	W2	T	R	Inscribed bore diameter			Dynamic rating C	Static rating C0
				B	B1	C									dr	Tolerance
	mm	mm	mm	mm	mm	mm	mm		mm	mm	mm	mm	mm	mm	mm			N	N	g
SC6MUU	18	30	25	20	5	15	M4×8	M3	9	15	15	28	6	9	6	0 -0.009	LM6UU	206	265	34
SC8MUU	22	34	30	24	5	18	M4×8	M3	11	17	18	32	6	11	8		LM8UU	265	402	52
SC10MUU	26	40	35	28	6	21	M5×12	M4	13	20	22	37	8	13	10		LM10UU	373	549	92
SC12MUU	29	42	36	30.5	5.75	26	M5×12	M4	15	21	25	39	8	14	12		LM12UU	412	598	102
SC13MUU	30	44	39	33	5.5	26	M5×12	M4	15	22	26	41	8	15	13		LM13UU	510	775	123
SC16MUU	38.5	50	44	36	7	34	M5×12	M4	19	25	35	46	9	19.5	16		LM16UU	775	1180	189
SC20MUU	42	54	50	40	7	40	M6×12	M5	21	27	36	52	11	21	20	0 -0.010	LM20UU	863	1370	237
SC25MUU	51.5	76	67	54	11	50	M8×18	M6	26	38	41	68	12	25.5	25		LM25UU	980	1570	555
SC30MUU	59.5	78	72	58	10	58	M8×18	M6	30	39	49	72	15	29.5	30		LM30UU	1570	2750	685

For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.

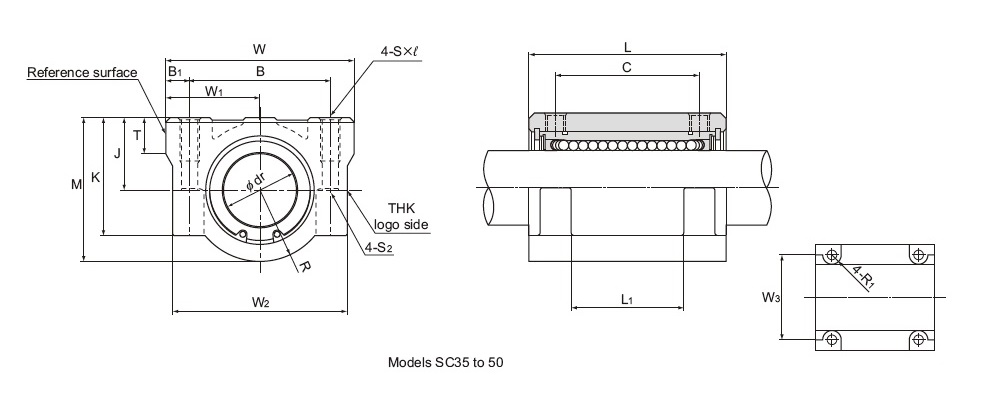

Model No.	Outer dimensions			LM casing dimensions																Model No. of Linear Bushing to be combined	Basic load rating		Mass
	Height M	Width W	Length L	Mounting hole position			Tap S × l	Through bolt S2	Center height J ±0.02	W1 ±0.02	K	W2	W3	L1	T	R	R1	Inscribed bore diameter			Dynamic rating C	Static rating C0
				B	B1	C												dr	Tolerance
	mm	mm	mm	mm	mm	mm	mm		mm	mm	mm	mm	mm	mm	mm	mm	mm	mm			N	N	g
SC35MUU	68	90	80	70	10	60	M8×18	M6	34	45	54	85	60	42	18	34	5	35	0 -0.012	LM35UU	1670	3140	1100
SC40MUU	78	102	90	80	11	60	M10×25	M8	40	51	62	96	80	44	20	38	8	40		LM40UU	2160	4020	1600

Application of THK THK SC6MUU

1. THK SC6MUU THK’s linear motion system helps to provide a guide device that enables this precision and speed to be realized.
2. THK SC6MUU In order to repeat the production of this advanced product, the LM guide and ball screw in the milling machine guide system which don’t waste of action
3. The LM guide and ball screw are indispensable for the movement of the tool section of the lathe because of its high rigidity and high precision.
4. By combining LM guides and ball screws with lubrication parts, we can reduce system design work and assembly steps, and extend the interval needed for maintenance.
5. Frequent earthquakes have caused great concern among residents in some regions. The vibration control system of THK THK SC6MUU can help solve the problem.
The system is based on the application technology of LM guide ball screw. It can provide protection to people’s life and life in earthquake. The system can not only prevent the damage caused by the earthquake, but also reduce people’s panic because of its omnipresent, reliable and durable.
