THK RBI14BD

More about: THK RBI14BD

For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.

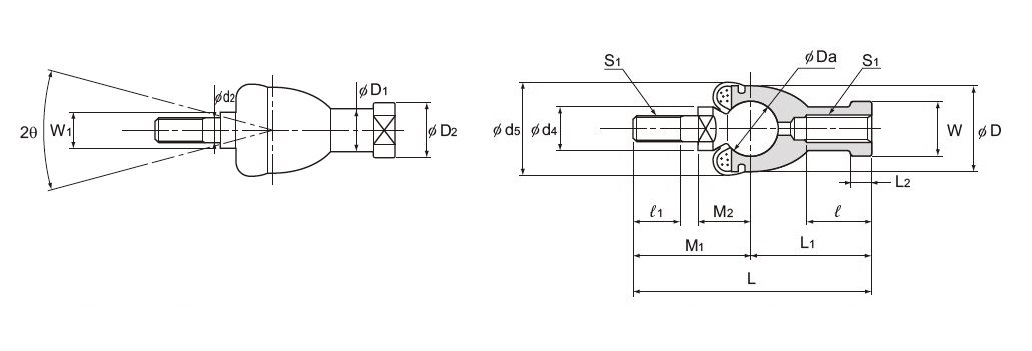

Model No.	Outer dimensions		Threaded S1 JIS Class 2	Holder dimensions						Ball shank dimensions						Boot d5	Ball diameter Da	Permissible tilt angles 2θ°	Applied static load		Yield point strength Pk	Mass
	Length L	Diameter D		L1	L2	l	D1	D2	W 0 -0.3	d2 h9	M1	M2 ±0.3	l1	W1 0 -0.3	d4				Tensile Cs	Compressive Cs
	mm	mm		mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	degree	N	N	N	g
RBI5D	46	17	M5×0.8	24	12	4	9	11	9	5	22	11	8	7	9	20	11.112	25	5690	11400	2840	25
RBI6D	55.2	20	M6×1	28	15	5	10	13	11	6	27.2	12.2	11	8	10	20	12.7	25	7450	14900	3730	40
RBI8D	65	24	M8×1.25	32	16	5	12.5	16	14	8	33	16	12	10	12	24	15.875	25	11700	23200	5880	75
RBI10D	74.5	28	M10×1.25	35	18	6.5	15	19	17	10	39.5	19.5	15	11	14	30	19.05	25	16800	33500	8430	120
RBI10BD	80.5	28	M10×1.5	35	18	6.5	15	19	17	10	45.5	19.5	21	11	14	30	19.05	25	16800	33500	8430	123
RBI12D	84	32	M12×1.25	40	20	6.5	17.5	22	19	12	44	21	17	17	19	32	22.225	25	22800	45600	11400	185
RBI12BD	91	32	M12×1.75	40	20	6.5	17.5	22	19	12	51	21	24	17	19	32	22.225	25	22800	45600	11400	190
RBI14D	103	36	M14×1.5	45	25	8	20	25	22	14	58	23.5	22	17	19	38	25.4	17	29800	59600	14900	275
RBI14BD	109	36	M14×2	45	25	8	20	25	22	14	64	23.5	28	17	19	38	25.4	17	29800	59600	14900	280
RBI16D	112	40	M16×1.5	50	27	8	22	27	22	16	62	25.5	23	19	22	44	25.4	17	29800	59600	14900	360
RBI16BD	118	40	M16×2	50	27	8	22	27	22	16	68	25.5	29	19	22	44	25.4	17	29800	59600	14900	370

Application of THK THK RBI14BD

1. THK RBI14BD THK’s linear motion system helps to provide a guide device that enables this precision and speed to be realized.
2. THK RBI14BD In order to repeat the production of this advanced product, the LM guide and ball screw in the milling machine guide system which don’t waste of action
3. The LM guide and ball screw are indispensable for the movement of the tool section of the lathe because of its high rigidity and high precision.
4. By combining LM guides and ball screws with lubrication parts, we can reduce system design work and assembly steps, and extend the interval needed for maintenance.
5. Frequent earthquakes have caused great concern among residents in some regions. The vibration control system of THK THK RBI14BD can help solve the problem.
The system is based on the application technology of LM guide ball screw. It can provide protection to people’s life and life in earthquake. The system can not only prevent the damage caused by the earthquake, but also reduce people’s panic because of its omnipresent, reliable and durable.
