Product name:THK RA9008
Materials:Bearing steel
Availability:In stock
Price: send email to: sale@noksbearings.com
Views: 960
Editor: admin

Product Detail:

More about :THK RA9008

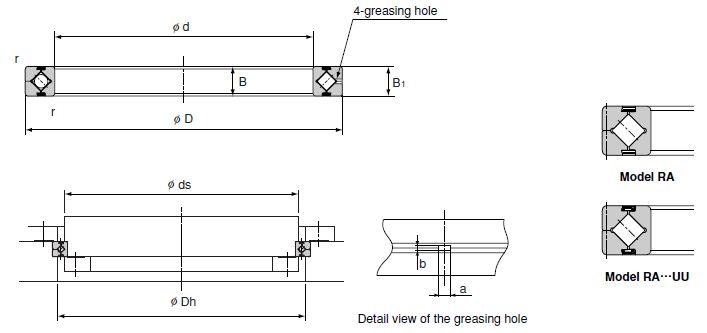

Shaft diameter Model No. Main dimensions Shoulder height Basic load rating Mass
Inner diameter
d
Outer diameter
D
Roller pitch circle diameter
dp
Width
B B1
Greasing hole
rmin
ds
(max)
Dh
(min)
Radial
a b Dynamic
rating
C
Static
rating
C0
mm mm mm mm mm mm mm mm mm kN kN kg
80RA8008809687820.80.583.590.56.3711.30.11
90RA90089010697820.80.593.5100.56.7612.40.12
100RA10008100116107820.80.5103.5110.57.1513.90.14
140RA14008140156147820.80.5143.5150.58.3319.10.19
180RA18013180206192132.51.60.818519924.549.80.68
200RA20013200226212132.51.60.820521925.854.70.71
For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.

Application of THK THK RA9008
1. THK RA9008 THK’s linear motion system helps to provide a guide device that enables this precision and speed to be realized.
2. THK RA9008 In order to repeat the production of this advanced product, the LM guide and ball screw in the milling machine guide system which don’t waste of action
3. The LM guide and ball screw are indispensable for the movement of the tool section of the lathe because of its high rigidity and high precision.
4. By combining LM guides and ball screws with lubrication parts, we can reduce system design work and assembly steps, and extend the interval needed for maintenance.
5. Frequent earthquakes have caused great concern among residents in some regions. The vibration control system of THK THK RA9008 can help solve the problem.
The system is based on the application technology of LM guide ball screw. It can provide protection to people's life and life in earthquake. The system can not only prevent the damage caused by the earthquake, but also reduce people's panic because of its omnipresent, reliable and durable.
