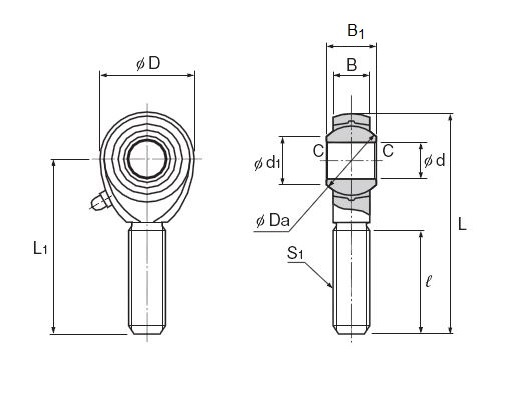

| Model No. | Outer dimensions | Threaded S1 JIS Class 2 | Holder dimensions | Grease nipple (Greasing hole) | Spherical inner ring dimensions | Permissible tilt angles | Applied static load Radial Cs | Mass | |||||||||
| Length L | Diameter D | Width B1 0 -0.1 | B ±0.1 | L1 | l | d H7 | Ball diameter Da | d1 | C | α1° | α2° | α3° | |||||
| mm | mm | mm | mm | mm | mm | mm | mm (inch) | mm | mm | degree | degree | degree | N | g | |||
| POS5 | 41 | 16 | 8 | M5×0.8 | 6 | 33 | 20 | (Ø1.5) | 5 | 11.112(7/16) | 7.7 | 0.3 | 8 | 13 | 30 | 3430 | 12.5 |
| POS6 | 45 | 18 | 9 | M6×1 | 6.75 | 36 | 22 | 6 | 12.7(1/2) | 9 | 0.3 | 8 | 13 | 30 | 4900 | 19 | |
| POS8 | 53 | 22 | 12 | M8×1.25 | 9 | 42 | 25 | PB107 | 8 | 15.875(5/8) | 10.4 | 0.5 | 8 | 14 | 25 | 6860 | 32 |
| POS10 | 61 | 26 | 14 | M10×1.5 | 10.5 | 48 | 29 | 10 | 19.05(3/4) | 12.9 | 0.5 | 8 | 14 | 25 | 10800 | 54 | |
| POS12 | 69 | 30 | 16 | M12×1.75 | 12 | 54 | 33 | 12 | 22.225(7/8) | 15.4 | 0.5 | 8 | 13 | 25 | 16700 | 85 | |
| POS14 | 77 | 34 | 19 | M14×2 | 13.5 | 60 | 36 | 14 | 25.4 (1) | 16.9 | 0.7 | 10 | 16 | 24 | 20600 | 126 | |
| POS16 | 85 | 38 | 21 | M16×2 | 15 | 66 | 40 | 16 | 28.575 (1 1/8) | 19.4 | 0.7 | 9 | 15 | 24 | 25000 | 185 | |
| POS18 | 93 | 42 | 23 | M18×1.5 | 16.5 | 72 | 44 | 18 | 31.75 (1 1/4) | 21.9 | 0.7 | 9 | 15 | 24 | 29400 | 260 | |
| POS20 | 101 | 46 | 25 | M20×1.5 | 18 | 78 | 47 | 20 | 34.925 (1 3/8) | 24.4 | 0.7 | 9 | 15 | 24 | 34300 | 340 | |
| POS22 | 109 | 50 | 28 | M22×1.5 | 20 | 84 | 51 | 22 | 38.1 (1 1/2) | 25.8 | 0.7 | 10 | 15 | 23 | 41200 | 435 | |
| POS25 | 124 | 60 | 31 | M24×2 | 22 | 94 | 57 | A-M6F | 25 | 42.862 (1 11/16) | 29.6 | 0.8 | 9 | 15 | 23 | 72500 | 650 |
| POS30 | 145 | 70 | 37 | M30×2 | 25 | 110 | 66 | 30 | 50.8 (2) | 34.8 | 0.8 | 10 | 17 | 23 | 92200 | 1070 | |
