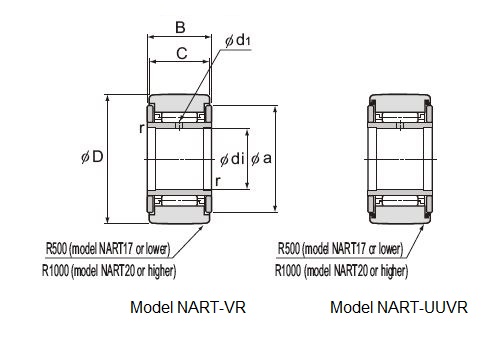

| Model No. | Main dimensions | Basic load rating | Track load capacity | Rotational speed limit1 | Mass | |||||||
| Inner diameter di | Outer diameter D | B | C | a | rsmin | Oil hole d1 | Dynamic C | Static C0 | Spherical outer ring | |||
| mm | mm | mm | mm | mm | mm | mm | kN | kN | kN | min-1 | g | |
| NART5VR | 5 | 16 | 12 | 11 | 12 | 0.3 | 1.5 | 6.46 | 7.81 | 1.08 | 10500 | 15.1 |
| NART6VR | 6 | 19 | 12 | 11 | 14 | 0.3 | 1.5 | 7.58 | 10.2 | 1.37 | 8700 | 21.5 |
| NART8VR | 8 | 24 | 15 | 14 | 17.5 | 0.3 | 1.5 | 11.7 | 15.6 | 1.86 | 7000 | 42.5 |
| NART10VR | 10 | 30 | 15 | 14 | 23.5 | 0.6 | 2 | 15.8 | 18.5 | 2.45 | 5700 | 66.5 |
| NART12VR | 12 | 32 | 15 | 14 | 25.5 | 0.6 | 2 | 17 | 21 | 2.74 | 5200 | 73 |
| NART15VR | 15 | 35 | 19 | 18 | 29 | 0.6 | 2 | 25.3 | 36.9 | 3.14 | 4300 | 106 |
| NART17VR | 17 | 40 | 21 | 20 | 32.5 | 1 | 2 | 32 | 46.6 | 3.72 | 3900 | 155 |
| NART20VR | 20 | 47 | 25 | 24 | 38 | 1 | 2.5 | 41.7 | 67.7 | 7.15 | 3400 | 255 |
| NART25VR | 25 | 52 | 25 | 24 | 43 | 1 | 2.5 | 45.4 | 79.5 | 8.23 | 3000 | 295 |
| NART30VR | 30 | 62 | 29 | 28 | 50.5 | 1 | 3 | 60 | 111 | 10.5 | 2400 | 485 |
| NART35VR | 35 | 72 | 29 | 28 | 53.5 | 1 | 3 | 63.2 | 123 | 12.9 | 2200 | 655 |
| NART40VR | 40 | 80 | 32 | 30 | 61.5 | 1 | 3 | 76.4 | 166 | 14.9 | 1900 | 865 |
| NART45VR | 45 | 85 | 32 | 30 | 66.5 | 1 | 3 | 80.5 | 183 | 16.1 | 1700 | 935 |
| NART50VR | 50 | 90 | 32 | 30 | 76 | 1 | 3 | 84.4 | 200 | 17.3 | 1600 | 1010 |
