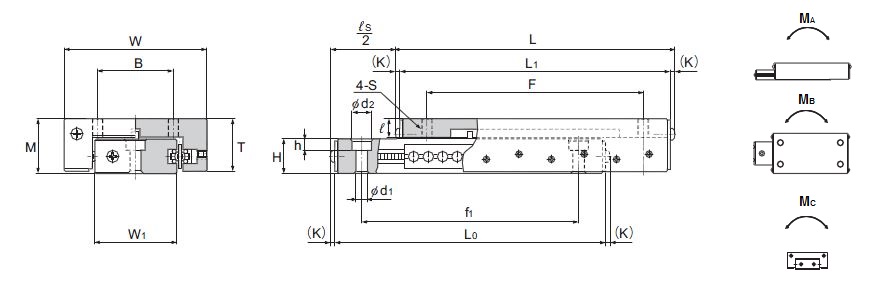

| Model No. | Slide dimensions | Base dimensions | Static permissible moment | Basic load rating | Mass | |||||||||||||||
| Max stroke ls | Width W &177;0.25 | Height M &177;0.25 | Length L | T | L1 | (K) | B | F | S×l | Width W1 | Height H | d1×d2×h | Length L0 | f1 | ||||||
| MA , MB | MC | C | C0 | |||||||||||||||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | N-m | N-m | N | N | g | |
| LSP1340 | 15 | 13 | 25 | 42 | 12.5 | 40 | 1 | 11 | 30 | M3×5 | 12.2 | 7.7 | 3.3×6×3.3 | 40 | 30 | 0.88 | 0.49 | 68.6 | 118 | 37 |
| LSP1365 | 25 | 13 | 25 | 67 | 12.5 | 65 | 1 | 11 | 55 | M3×5 | 12.2 | 7.7 | 3.3×6×3.3 | 65 | 55 | 1.76 | 0.98 | 118 | 206 | 60 |
| LSP1390 | 50 | 13 | 25 | 92 | 12.5 | 90 | 1 | 11 | 80 | M3×5 | 12.2 | 7.7 | 3.3×6×3.3 | 90 | 80 | 3.04 | 1.27 | 157 | 275 | 85 |
| LSP2050 | 25 | 20 | 44 | 53 | 18.3 | 50 | 1.5 | 20 | 35 | M5×8.2 | 22.3 | 11 | 5.3×9×5.3 | 50 | 35 | 1.37 | 2.25 | 157 | 284 | 114 |
| LSP2080 | 50 | 20 | 44 | 83 | 18.3 | 80 | 1.5 | 20 | 65 | M5×8.2 | 22.3 | 11 | 5.3×9×5.3 | 80 | 65 | 3.53 | 4.51 | 304 | 559 | 184 |
| LSP20100 | 75 | 20 | 44 | 103 | 18.3 | 100 | 1.5 | 20 | 85 | M5×8.2 | 22.3 | 11 | 5.3×9×5.3 | 100 | 85 | 5 | 5.69 | 392 | 706 | 231 |
| LSP25100 | 50 | 25 | 66 | 103.8 | 24 | 100 | 1.9 | 35 | 75 | M5×8.5 | 38 | 15.8 | 5.3×9×5.3 | 100 | 75 | 9.22 | 14.5 | 588 | 1069 | 433 |
| LSP25125 | 75 | 25 | 66 | 128.8 | 24 | 125 | 1.9 | 35 | 100 | M5×8.5 | 38 | 15.8 | 5.3×9×5.3 | 125 | 100 | 12.9 | 18.1 | 735 | 1333 | 547 |
