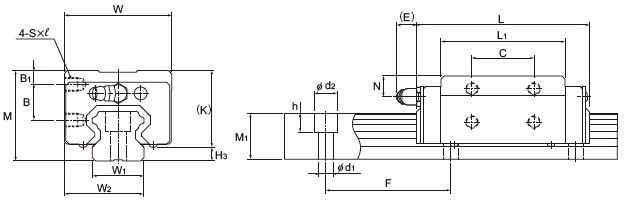

| Model No. | Outer dimensions | Block dimensions | Rail dimensions | Basic load rating | ||||||
| Radial | ||||||||||
| Height M | Width W | Length L | B | C | S x l | Pitch F | d1xd2xh | Dynamic C | Static C0 | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | |
| HSR15YR | 28 | 33.5 | 56.5 | 11.5 | 18 | M4 x 5 | 60 | 4.5x7.5x5.3 | 10.9 | 15.7 |
| HSR20YR | 30 | 44.5 | 74 | 11.5 | 25 | M5 x 6 | 60 | 6x9.5x8.5 | 19.8 | 27.4 |
| HSR25YR | 40 | 47.5 | 83 | 16 | 30 | M6 x 6 | 60 | 7x11x9 | 27.6 | 36.4 |
| HSR30YR | 45 | 59.5 | 98 | 16 | 40 | M6 x 9 | 80 | 9x14x12 | 40.5 | 53.7 |
| HSR35YR | 55 | 69.5 | 109.4 | 23 | 43 | M8 x 10 | 80 | 9x14x12 | 53.9 | 70.2 |
| HSR45YR | 70 | 85.5 | 139 | 30 | 55 | M10 x 14 | 105 | 14x20x17 | 82.2 | 101 |
| HSR55YR | 80 | 99.5 | 163 | 32 | 70 | M12 x 15 | 120 | 16x23x20 | 121 | 146 |
| HSR65YR | 90 | 124.5 | 186 | 35 | 85 | M16 x 22 | 150 | 18x26x22 | 195 | 228 |
