More about :THK CFN6R-A

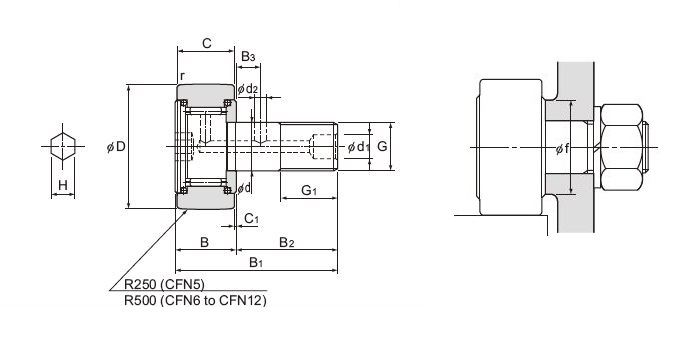

| Stud diameter d | Model No. | Main dimensions | Basic load rating | Permissible thrust load | Maximum permissible load F0 | Track load capacity | Rotational speed1 | Mass | ||||||||||||||
| Outer diameter D | Outer ring width C | Threaded G | G1 | B | Overall length B1 | B2 | B3 | C1 | d1 | d2 | H | rsmin | Shoulder height f (Min.) | Dynamic C | Static C0 | |||||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | N | kN | kN | min-1 | g | |
| 5 | CFN5R-A | 13 | 9 | M5×0.8 | 7.5 | 10 | 23 | 13 | — | 0.5 | —* | —* | 3 | 0.3 | 10 | 3.14 | 2.77 | 160 | 1.42 | 0.53 | 29000 | 10.5 |
| 6 | CFN6R-A | 16 | 11 | M6×1 | 8 | 12 | 28 | 16 | — | 0.6 | —* | —* | 3 | 0.3 | 12 | 3.59 | 3.58 | 250 | 2.11 | 1.08 | 25000 | 18.5 |
| 8 | CFN8R-A | 19 | 11 | M8×1.25 | 10 | 12 | 32 | 20 | — | 0.6 | —* | —* | 4 | 0.3 | 14 | 4.17 | 4.65 | 290 | 4.73 | 1.37 | 20000 | 28.5 |
| 10 | CFN10R-A | 22 | 12 | M10×1.25 | 12 | 13 | 36 | 23 | — | 0.6 | —* | —* | 5 | 0.3 | 16.5 | 5.33 | 6.78 | 400 | 5.81 | 1.67 | 17000 | 45 |
| 12 | CFN12R-A | 30 | 14 | M12×1.5 | 13 | 15 | 40 | 25 | 6 | 0.6 | 6 | 3 | 6 | 0.6 | 21.5 | 7.87 | 9.79 | 680 | 9.37 | 2.45 | 14000 | 105 |
